WORK-OVER BLOWOUT PREVENTER
WORK-OVER BLOWOUT PREVENTER
HYDRAULIC OR MANUAL OPERATED, double ram, studded top and bottom, complete with 1 set of rams, ACC. TO API 16A LATEST EDITION – K1 execution
MAIN COMPONENTS

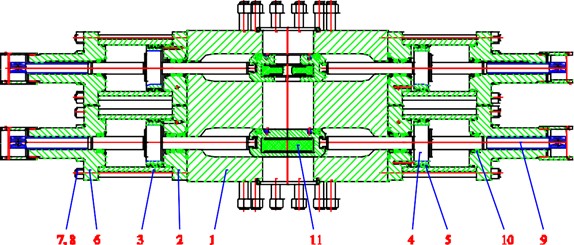

1. Hydraulic Workover Blowout Preventer, type RHW 02 :
Item |
Description |
Item |
Description |
Item |
Description |
|
1 |
Body |
5 |
Piston Seal |
9 |
Locking stem |
|
2 |
Lower Bonnet |
6 |
Uper Bonnet |
10 |
Stem packing |
|
3 |
Cylinder |
7 |
Rod |
11 |
Ram Assembly |
|
4 |
Piston |
8 |
Nut |
|
|
2. Manual Workover Blowout Preventer, type RMW 02
|
Description |
Item |
Description |
Item |
Description |
|
|
1 |
Body |
5 |
Bearing |
7 |
Handwheel |
|
2 |
Bonnet |
6 |
Bearing Cap |
8 |
Stem packing |
|
3 |
Stem Adapter |
4 |
Stem |
9 |
Ram |

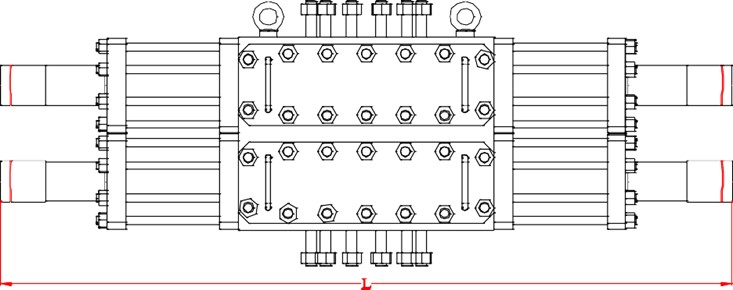

DIMENSIONS:
|
Size |
PN |
Dimensions |
|||||||
|
L Type RHW 02 |
L Type RMW 02 |
B |
H |
|
|||||
|
inch |
bar |
psi |
mm |
mm |
mm |
STD |
STD & FE |
FE |
|
|
mm |
mm |
mm |
|
||||||
|
7
1/16” |
210 |
3000 |
2270 |
1635 |
360 |
540 |
680 |
820 |
|
|
7 1/16” |
350 |
5000 |
2270 |
1635 |
360 |
540 |
680 |
820 |
|
